Capacitor Product Details:

General:

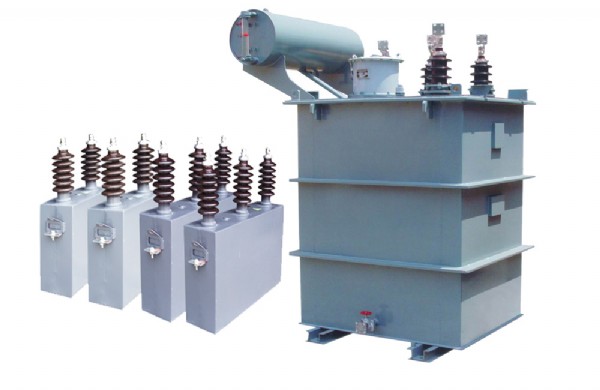

High voltage shunt capacitor is oil immersed and is applied to AC power system with rated voltage over 1KV for improving power factor and quality of power grid.



Installation:

ØAmbient  temperature:≥-40℃

ØNo hazardous gas, steam and conductive & explosive dust

ØNo strong vibration

Standard

IEC60871-1:1999 Standard(High voltage shunt capacitor).



Features:
Ø  Large capacitance
Ø  Compact structurer
Ø  High realibility
Ø  Steady performance
Ø  High temperature resistance


Specifications:

Ø  Loss angle(tgδ): For film-paper capacitor is ≤ 0.0008, and that of film dielectric capacitor is ≤0.0005

Ø  Capacitor dielectric between foil can endure 2.15 times of rated voltage for 10 seconds



Typical specification:

Ø  Two 50MVAr-132kV -50Hz shunt capacitor banks in bridge connection

Ø  Including inrush current limiting air-core reactors

Ø  Unbalance protection, control and protection relay panels
