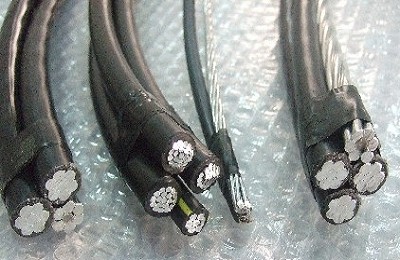

ABC-Aerial Bundle Cable-Conductor
 |
|
ABC-Aerial Bundle Cable-Conductor Product Details：
ABC-Aerial Bundle Cable-Conductor
General:
General:
Aerial Bundle Cable / Conductor (ABC) cable is to supply power from the utility's lines to the consumer's weather head. For service at 600 volts or less (phase to phase) at a conductor temperature of 75°C maximum for polyethylene Insulation or 90°C maximum for cross linked insulation
Standards:
NFC 33209: Aerial Bundled Conductors
IEC 502: Extruded solid dielectric insulated power cable
IEC 1089: Round wire concentric lay overhead electrical stranded conductors
IEC 228: Conductors of Insulated Cables
B-230 Aluminum Wire 1350-H19 for Electrical Purposes
B-231 Aluminum Conductors, Concentric-Lay-Stranded
B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR)
B-399 Concentric-Lay-Stranded 6201-T81 Aluminum Alloy Conductors
B-498 Zinc-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR).
Triplex Service Drop cable meets or exceeds all applicable requirements of ANSI/ICEA body S-76-474
Aerial Bundled Conductor Technical Structure:
Phase Conductors
The Conductor shall be of multi-strand round compacted hard drawn Aluminium conforming to IEC 1089 with XLPE insulation.
Street Lamp Wire
The Conductor shall be of multi-strand round compacted hard drawn Aluminium conforming to IEC 1089 with XLPE insulation.
Neutral Messenger
The Strain Bearing Neutral conductor shall consist of multi-strand round aluminium alloy conforming to IEC 1089 with XLPE insulation.
