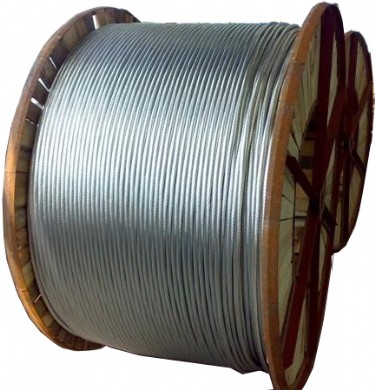

ACSR-Aluminium Conductor Steel Reinforced Product Details:

ACSR: Aluminum Conductor Steel Reinforced

General:
The mixed construction of ACSR makes it a very flexible medium from a design point of view. By varying the relative proportions of aluminium and steel the ideal conductor for any particular application can be produced. Generally, ACSR consists of a galvanized steel core of 1 wire, 7 wires or 19 wires surrounded by concentric layers of aluminium wire. When a conductor with a high current carrying capacity and comparatively low strength is required, special constructions are available with a high aluminium content.

Standards:
 British Sizes BS 215, Part 2: 1970
 IEC Sizes IEC 61089 : 1991
 British Sizes BS EN 50182:2001
 American Sizes ASTM B 232/B 232M-99
 Canadian Sizes CSA C 49-1965
 German Sizes DIN 48 204 – APR 1984

Features:
 A coating of non-oxidizing grease is normally applied to the steel cores of all conductors.
 Protection offered by the galvanizing of the steel wires.
 One or more layers of the aluminium wires can, if required, be supplied partially or fully greased.
