Rectifier Transformer

Previous Special utility transformer(SUT) Product

Next Special utility transformer(SUT) Product

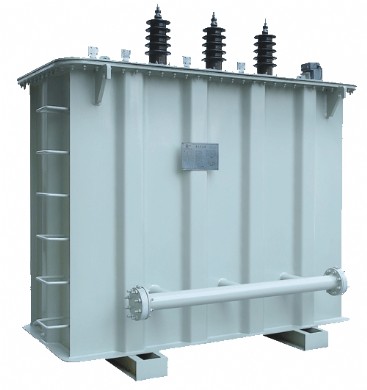

Rectifier Transformer Product Details:


Rectifier transformers are combined with a diode or thyristor rectifier. The applications range from very large aluminum electrolysis to various small and medium size operations. The transformers may have a built-in or separate voltage regulation unit for direct output regulation of diode rectifiers, and correspondingly a power factor improvement with a thyristor rectifier.


CTSS is renowned and appreciated by its reliable products performance and integrated services.



Ø  IEC-76 .1-1993 Power Transformers: general

Ø  IEC-60076-3: 2000 Power Transformers Insulation levels, dielectric tests and external clearances in air

Ø  IEC 61378-1 Convertor transformers - Part 1: Transformers for industrial applications

Ø  IEC 60146 Semiconductor convertors General requirements and line commutated convertors Part 1-3 Transformers and reactors


Ø  Low loss

Ø  Low noise

Ø  High efficiency

Ø  Low partial discharge

Ø  Strong mechanical strength and short-circuit withstand ability

Ø  Operation reliability

Ø  Easy maintenance

Ø  Pretty outline and compact structure

Ø  100% guaranteed no leakage


Brief specification:

Ø  Voltage class: 33kV, 35kv, 45kv,60kv,66kv,90kv,110kV, 132kv, 145kv

Ø  Capacity: 3000120000kVA

Ø  Short circuit impedance: 6.5-10.5%

Ø  No load current: 0.3~1.2%

Ø  Losses: no-load losses is fully comply with IEC standard requirements



Ø  Aluminum smelting

Ø  Magnesium smelting

Ø  Copper smelting

Ø  Zinc smelting

Ø  Chemicals, mainly chlorine.

Ø  The largest installations are those for aluminum electrolysis with several transformer/rectifier units in parallel operation to achieve the required DC current. In all cases the rectifier can be with diodes or thyristors.


CTSS can provide you Complete project package, including recifier transformer, rectifier, control cabinet and all necessary accessories.
