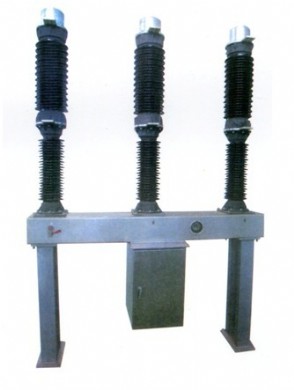

72.5kV Gas Insulated Circuit Breaker (SF6) CB

72.5kV Gas Insulated Circuit Breaker (SF6) CB Product Details：

72.5kV Gas Insulated Circuit Breaker(SF6) CB
General:

Circuit breaker (CB) has been around for almost as long as industrial electrical power usage. They react automatically to fluctuations in electrical current, and trip to protect a circuit from damage from overloading or short circuiting. Modern SF6 type circuit breakers use compressed gas to interrupt current flow and are common in electrical power substations.
Current interruption in a high-voltage circuit-breaker is obtained by separating two contacts in a medium, such as sulfur hexafluoride (SF6), having excellent dielectric and arc-quenching properties. After contact separation, current is carried through an arc and is interrupted when this arc is cooled by a gas blast of sufficient intensity.

Standards:

IEC-60056 High Voltage Alternating Current Circuit-Breakers

GB1984-2003 High Voltage Alternating Current Circuit-Breakers

Features:

Ø   Compact and simple construction

Ø   Low operation noise

Ø   High reliability

Ø   No leakage, operator and environment friendly design.

Ø   Easy erection & free maintenance

Application: It is suitable for control and protection of electrical power system, and can also be used as interconnected circuit breaker.

Typical specification:

Ø   Type: SF6 Circuit Breaker

Ø   Highest system voltage: 72.5kV

Ø   Rated frequency: 50Hz

Ø   Rated current: 1250, 2000 , 2500,3150,4000A

Ø   Rated short circuit breaking current: 31.5,40KA( MAX design can reach 50KA)

Ø   Rated short circuit making current (peak): 100,80KA

Ø   Rated short time withstand current : 31.5,40 KA

Ø   Rated peak withstand current(peak) : 100,80KA

Ø   Rated operating sequence: O-0.3s-CO-180s-CO or O-15S-CO

Ø   SF6 rated pressure: 0.4MPa

Ø   SF6 annual gas leakage ratio: ≤0.5%

CTSS catalogue is available as per request.
