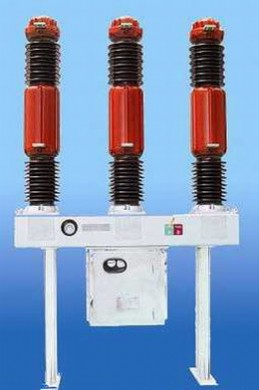

40.5kV Gas Insulated Circuit Breaker(SF6)CB

Next Air insulated switchgear(AIS) Product

40.5kV Gas Insulated Circuit Breaker(SF6)CB Product Details:


Circuit breaker (CB) has been around for almost as long as industrial electrical power usage. They react automatically to fluctuations in electrical current, and trip to protect a circuit from damage from overloading or short circuiting. Modern SF6 type circuit breakers use compressed gas to interrupt current flow and are common in electrical power substations.
Current interruption in a high-voltage circuit-breaker is obtained by separating two contacts in a medium, such as sulfur hexafluoride (SF6), having excellent dielectric and arc-quenching properties. After contact separation, current is carried through an arc and is interrupted when this arc is cooled by a gas blast of sufficient intensity.


ØIEC-60056 High Voltage Alternating Current Circuit-Breakers

ØGB1984-2003 High Voltage Alternating Current Circuit-Breakers



Ø   Compact and simple construction

Ø   Low operation noise

Ø   High reliability

Ø   No leakage, operator and environment friendly design.

Ø   Easy erection & free maintenance


Application: It is suitable for control and protection of electrical power system, and can also be used as interconnected circuit breaker.


Typical specification:

Ø   Type: SF6 Circuit Breaker

Ø   Highest system voltage: 40.5kV

Ø   Rated frequency: 50Hz

Ø   Rated current: 1250,2000,2500,3150

Ø   Rated short circuit breaking current: 40,31.5 KA

Ø   Rated short circuit making current (peak): 100,80KA

Ø   Rated short time withstand current : 40,31.5 KA

Ø   Rated peak withstand current(peak) : 100,80KA

Ø   Rated operating sequence: O-0.3s-CO-180s-CO or O-15S-CO

Ø   SF6 rated pressure: 0.5MPa

Ø   SF6 annual gas leakage ratio: ≤0.5%

CTSS catalogue is available as per request.
